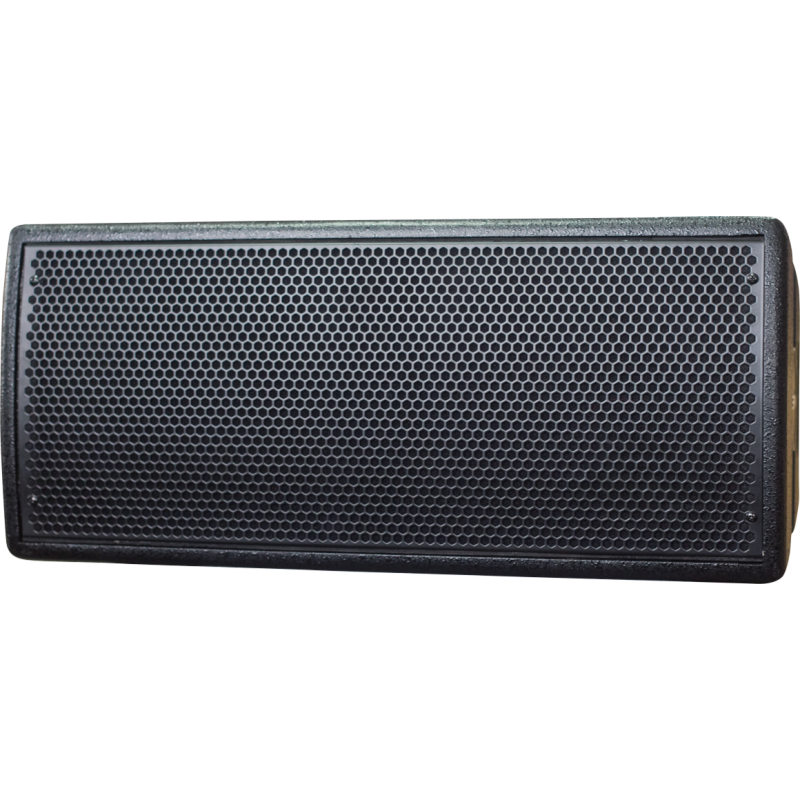

TYPE 10” 2-way active line array

Frequency Response 60Hz-20KHz (Bi-amp mode)

Power capacity(RMS) 1000W(LF) + 200W(HF)

Power capacity 2000W(LF) + 400W(HF)

LF 2 x10”Woofer, 2” Voice Coil

HF 2” Voice Coil Compression Diver

Sensitivity 97dB

Maximum SPL 128dB

Input Connection/Link Out XLR

Input sensitivity 0.775V

Limiter Dual Protection for Woofer And Driver

High Frequency Booth Near / Far

Ac Input 110-120V / 220-240V (50-60Hz)

Dimensions (H×W×D) 714×345×415mm

Weight 29kg

SL-118AD LANE ARAY WOOFFER MEG
