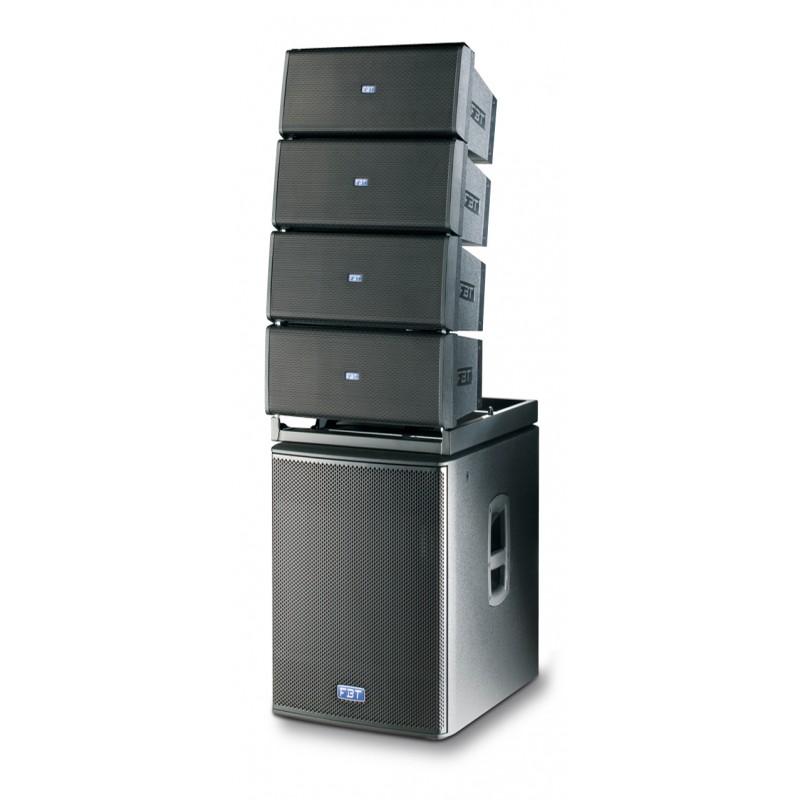

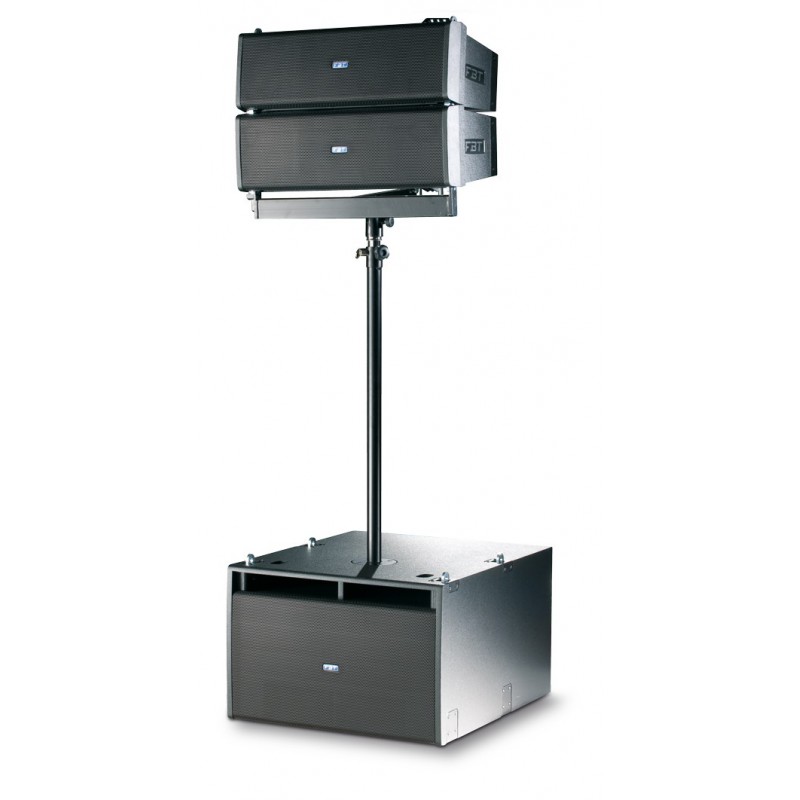

LINE ARRAY MITUS FBT

MITUS 206L

**Configuration: 2 way

**Recommended amplifier: 500LF/150HF W RMS

**Long Term power: 250LF/70HF W

**Short term power: 1000LF/300HF W

**Nominal impedance: 16LF/16HF ohm

**Frequency response: 75Hz - 20Khz -6dB

**Low Frequency woofer: 2x6.5 - 7.1coil neodumium inch

**High frequency driver: 1x1.4 - 2.5 coil neodymium inch

**Sensitivity (@1W/1m): 97LF/108HF dB

**Maximum SPL cont/peak: 125/129LF - 129/133HF dB

**Dispersion: 100°x10° max dependant upon n° of element HxV

**Crossover Frequency: external active KHz

**Recommended HP filter: 65Hz - 24dboct

**Recommended external filter: Digital management with FBT presets

**Input connector: 2 x speakon NL4MD-V in & thru

**Net Dimension (WxHxD): 574x220x383 - 22.6x8.7x15.1 mm/inch

**Net Weight: 13.5/29.8 kg/lb

**Transport Dimension (WxHxD): 655x455x280 - 25.8x17.9x11 mm/inch

**Transport Weight: 15.2/33.5 Kg/lb

MITUS-118SA

**Configuration: 1 way

**Built-in amplifier LF/HF: 1200 W RMS

**Built-in amplifier peak LF/HF: 2400 W

**Frequency response: 36Hz - 100Hz -6dB

**Low Frequency woofer: 1x18 - 3coil neodymium inch

**High Frequency driver: - inch

**Maximum SPL cont/peak: 135/139 half-space dB

**Dispersion: omnidirectional HxV

**Input impedance: 22 Kohm

**Crossover Frequency: preset dependent KHz

**AC Power requirements: 640 VA

**Input connector: XLR with loop

**Power cord: 5/16.4 m/ft

**Net Dimension (WxHxD): 574x594x730 - 22.6x23.4x28.7 mm/inch

**Net Weight: 47/103.6 kg/lb

**Transport Dimension (WxHxD): 460x775x765 - 18.1x30.5x30.1 mm/inch

**Transport Weight: 56.2 / 123.9 Kg/lb
